180ASG series servo motor
Flange: 180 series servo motor
Voltage specifications: AC220V, AC380V
Power coverage: 2.7KW-7.5KW
Rated torque: 17N. m-48N. m
Encoder: 2500/5000PPR/17Bit absolute value/23Bit absolute value
Protection level: IP65 waterproof
Insulation level: F
产品特点
-
-
控制精度高
Installing high-performance encoders, adopting vector control technology, and paired with high-precision servo drives, the closed-loop effect can reach 0.001mm, fundamentally solving the problem of traditional motor step loss
-
-
-
矩频特性好
The high-speed performance of high-performance servo drive systems is improved by more than 30% compared to open-loop stepping, and the effective torque can be increased to over 70% of the holding torque, allowing the motor to maintain high torque operation during high-speed processes
-
-
-
具有过载能力强
The high-speed performance of high-performance servo drive systems is improved by more than 30% compared to open-loop stepping, and the effective torque can be increased to over 70% of the holding torque, allowing the motor to maintain high torque operation during high-speed processes
-
-
-
防水等级高
5 pairs of servo motors, protection level: IP65, excellent waterproof performance, capable of normal operation underwater
-

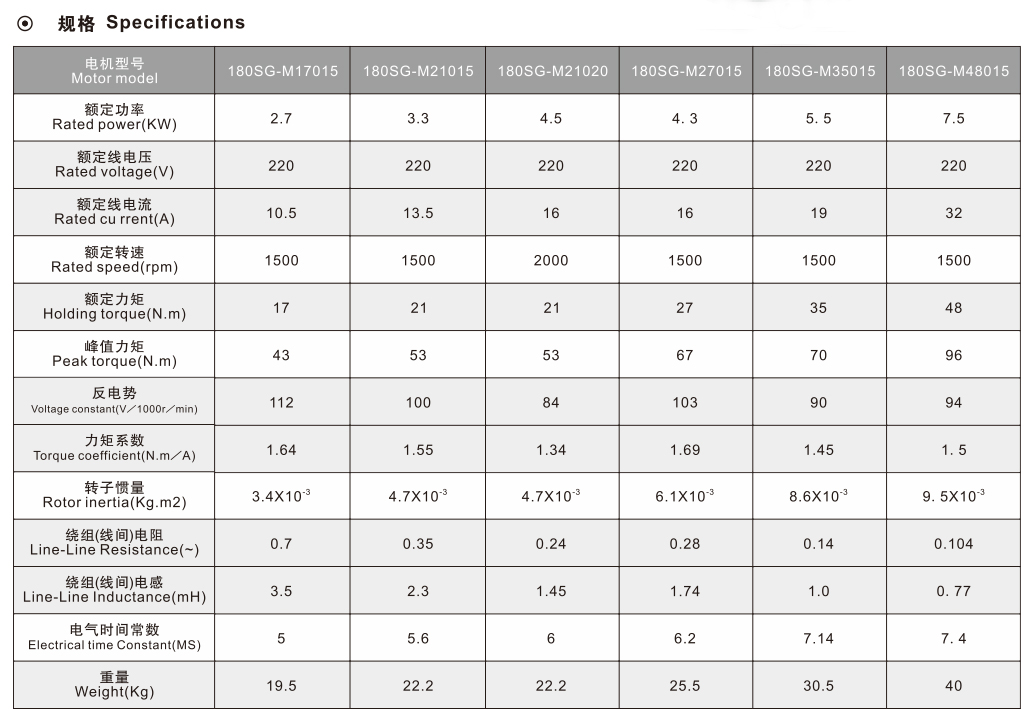

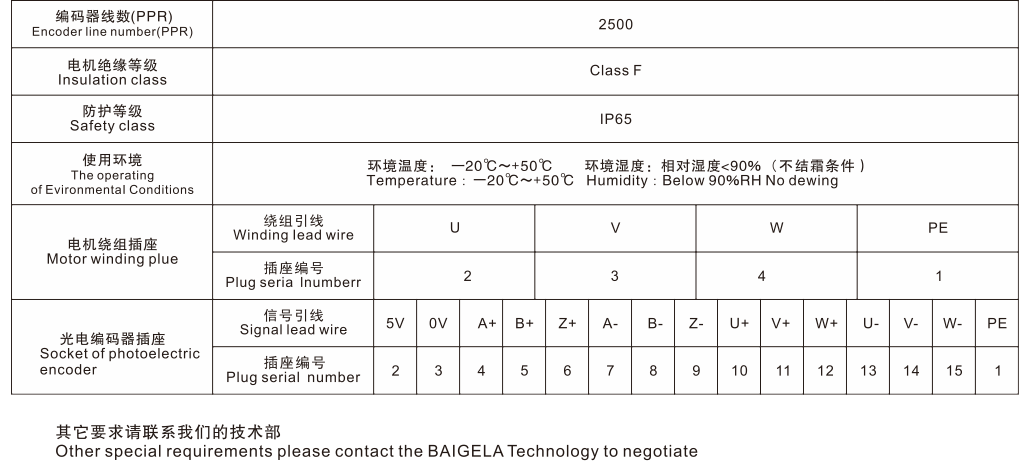

产品详情
